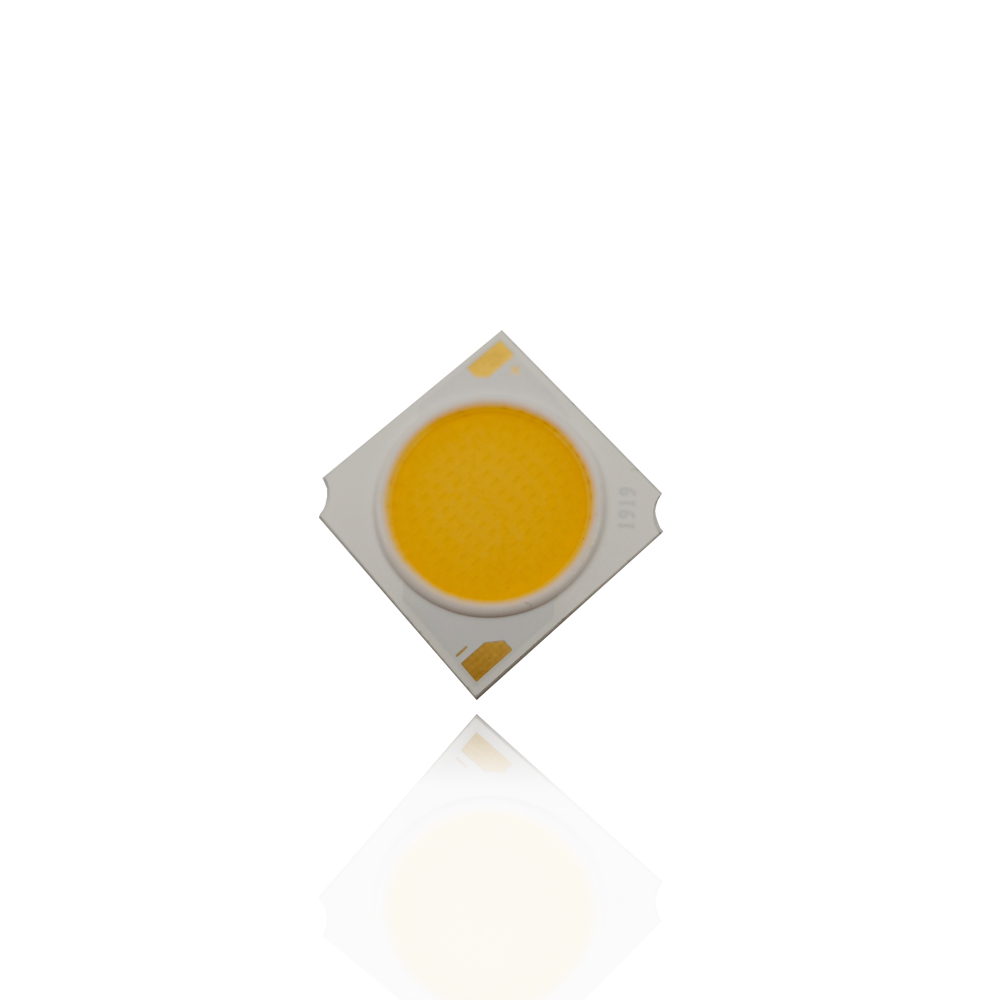

High cri 80 aluminum substrate flip chip Led cob 2700-6500k 1919 series 25W 30W 40W
| Models | LN-AFS19XW-P25-17 | LN-AFS19XW-P30-17 | LN-AFS19XW-P40-17 |
| Electronic power | 25W | 30W | 40W |
| Color temperature | WW:Warm white=2800-3200K NW:Neutral white=4000-4500K PW:Pure white=6000-7000K | WW:Warm white=2800-3200K NW:Neutral white=4000-4500K PW:Pure white=6000-7000K | WW:Warm white=2800-3200K NW:Neutral white=4000-4500K PW:Pure white=6000-7000K |
| Luminous efficiency | 90-110LM/W | 90-110LM/W | 90-110LM/W |
| Working voltage | 35-38V | 90-96V | 35-38V |
| Circuit | 12S4P | 30S2P | 12S7P |
| Size | 19*19mm | 19*19mm | 19*19mm |
| LES(Diameter) | R17mm | R17mm | R17mm |
| View angle | 120DEG | 120DEG | 120DEG |
| IF | 550-800mA | 300mA | 900-1100mA |
Design Advantage :
1, High density
2, High power series
3, Low thermal resistance
4, SDCM<5
5, CRI available in 80/90/95+
6, Flip chip technology
7, Good stability
8, Cost performance
Application:
1, LED spotlight
2, LED car light
3, LED downlight
4, LED tracking light
5, LED wall lamp
6, LED bulb
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon (mostly within few hours).
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.
Q5: Do you support drop shipping and how much is the shippping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, and it can be calculated.
