4046 Series 40W-60W 80W-120W 150W-200W Led Cob Chip for LED Streetlight
| Power | 40W-60W/80W-120W/150W-200W |
| CCT | 2700-6500K |
| LM/W | 120-140/110-130 |
| IF | 1250-1800mA/2500-4000mA/3500-4500mA |
| VF | 30-33V/42-48V |
| Circuit | 10S10P/10S21P/14S30P |
| Whole Size | 40X46MM |
| Emit Size | 25*25MM |
| View Angle | 120° |
| CRI | 70/80/90/95 |
| Substrate | Super-Aluminum |
| Design Advantage | 1,High density
2,High power series
3,Low thermal resistance
4,SDCM<5
5,CRI available in 80/90/95+
6,Flip chip technology
7,Good stability |
| Appilication | 1,LED floodlight
2,LED streetlight
3,LED high bay light
4,LED wall washer
5,LED landscape lamp
6,LED explosion-proof light |

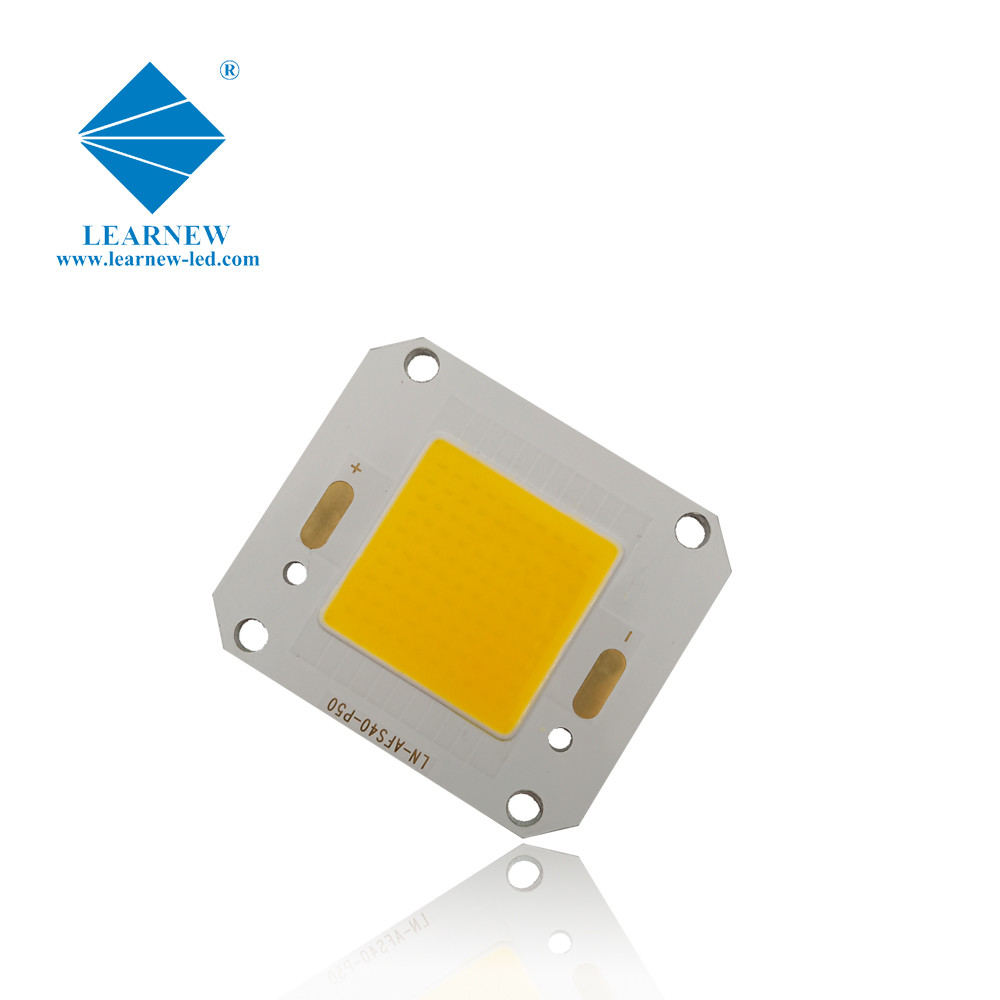

Learnew 4046 series LED COB CHIP have 40W-60W/80W-120W/150W-200W, and CCT can according to our customized do 2700-6500K.
The whole size is 40X46MM, and the emit size is 25*25MM. The product view angle is 120°, and the CRI we can do 70/80/90/95. 4046 series product we use Super-Aluminum substrate, so it have good stability.
FAQ
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters, application, you contact way and quantity,our professional team will reply you in one hour here.
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team.
Q6: How to place an order?
A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
