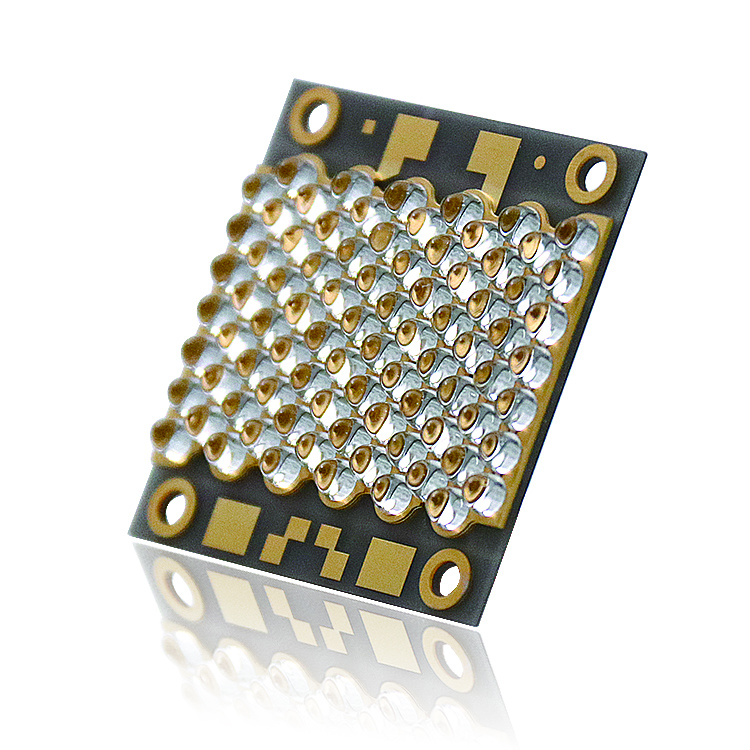

200W UVA SMD LED Chip 5000mA 7000mA For UV Curing / 3D Printer

Name: 200W UVA SMD LED Chip 5000mA 7000mA For UV Curing 3D Printer
Brand: Learnew
Price: 70 USD

Buy cheap 200W UVA SMD LED Chip 5000mA 7000mA For UV Curing / 3D Printer product

Brand Name : Learnew

Model Number : LN-CVS35UV-P84-A

Certification : CE;ROHS

Place of Origin : China

MOQ : 1000

Price : US$70/PCS-US$140/PCS

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100000PCS Per Month

Delivery Time : 7-90

Packaging Details : Samples packing method can be in a Antistatic bag, Anti-static plate in deal with empty space, or Circle up with foam. Order packing method will be Anti-static plate in deal with empty space.

Model : LN-CVS35UV-P84-A

Power : 200W

Dominant Wavelength : 365nm/385nm/395nm

Whole Size : 35*35MM

Lighting Area : 22*35MM

View Angle : 30°

Contact Now

UVA Model	LN-CVS35UV-P84-A
Power	200W
Dominant Wavelength	365nm/385nm/395nm
Optical Power	67000-77000mW/84000-98000mW/90000-105000mW
IF	5000mA(Max=7A)
VF	38-48V
Circuit	12S7P
Whole Size	35*35MM
Lighting Area	22*35MM
View Angle	30°
LENS	QUARTZ GLASS LENS
Substrate	ALN Coppering
Warranty	10,000Hrs or 2 years
Design Advantage	1,Long life span 2,low thermal resistance 3,High effiency 40%-50% 4,Ingorganic encapsulation 5,High density and intensity 6,Screw free assemble for high power curing use 7,Multi wavelength 365nm/385nm/395nm/405nm/420nm in one design 8,Special view angle in 30DEG or 120DEG
Appilcation	1,UV curing 2,LED growing market 3,Offset printer 4,3D printer 5,Exposure machines 6,Inkjet printer 7,High intensity curing Market like 3KW,7kW,15KW...

200W UVA SMD LED Chip 5000mA 7000mA For UV Curing / 3D Printer
