120-140lm/W High Quality 4046 30W 50W 100W 30v 3000k 6000k White Color Flip Chip Cob Led Chip For Led Streetlight
4046 chip specifications
| FLIP CHIP | POWER | CCT | LM/W | IF | VF | Circuit | Chips | WHOLE SIZE | EMIT SIZE | VIEW ANGLE | CRI | SUBSTRATE |
| 4046 SERIES | 45W-55W | 2700-6500K | 90-110 | 1350-1500mA | 30-33V | 10S10P | F1022 | 40X46MM | 25MM | 120° | 70/80 | Aluminum |
| 80W-110W | 2700-6500K | 90-110 | 2300-3200mA | 30-33V | 10S21P | F1022 | 40X46MM | 25MM |
4046 cob Design Advantage
1, High density
2, High power series
3, Low thermal resistance
4, SDCM<5
5, CRI available in 80/90/95+
6, Flip chip technology
7, Good stability
8, Cost performance
cob led chip Application
1, LED floodlight
2, LED streetlight
3, LED high bay light
4, LED wall washer
5, LED landscape lamp
6, LED explosion-proof light

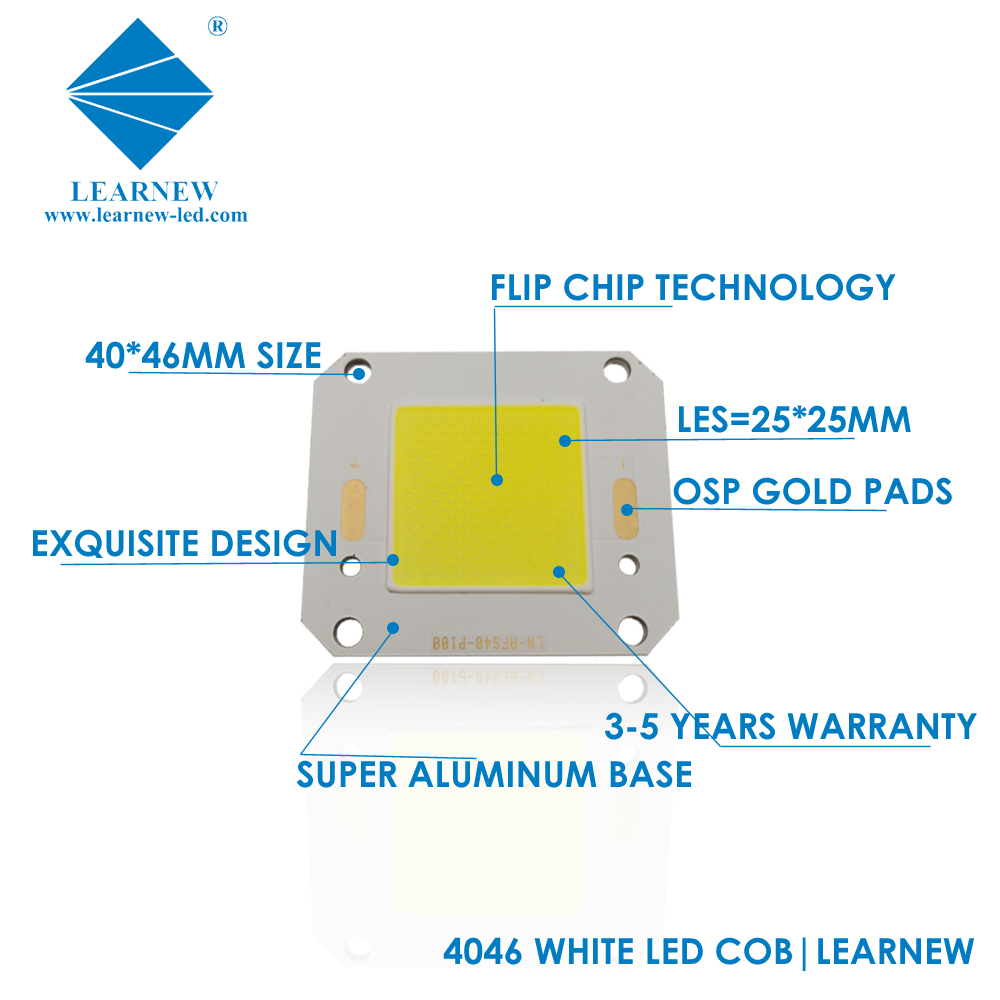

55W CHIP picture
4046 led chip FAQ
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon (mostly within few hours).
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.
Q5: Do you support drop shipping and how much is the shippping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, and it can be calculated.
Q6: How to place an order?
A6: If you want to place an order, Please feel free to send us an inquiry email or contact us by trademanager online, we will reply you within 24hours(working day).
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 3-75working days. For samples, the delivery could be as fast as same day.
